Water Heater Thermostat Replacement in Valrico, FL

What Water Heater Thermostats Do

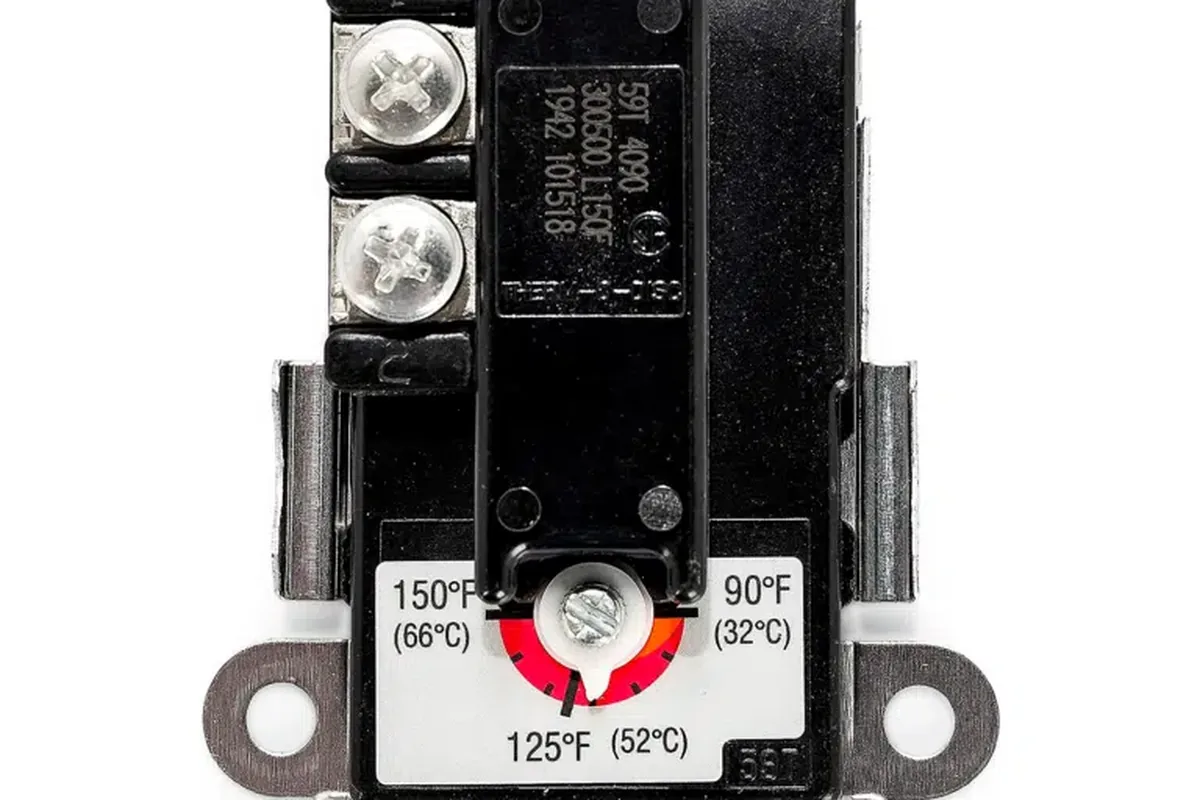

Electric tank water heaters use two thermostats, upper and lower, mounted against the tank wall behind access panels. They are the brains of the heating sequence. The upper thermostat has priority: when the water at the top of the tank drops below setpoint, it sends power to the upper element. Once the upper zone is satisfied, it hands power down to the lower thermostat, which heats the bulk of the tank. Each thermostat also carries a high-limit safety switch, the red reset button, that trips and cuts all power if the water temperature climbs dangerously high.

Gas heaters use a different arrangement, with temperature sensing built into the gas control valve, which is covered on our gas control valve page. This page addresses the dual-thermostat system on electric tanks, the most common electric-heater control failure we see in Valrico homes. When a thermostat fails, the symptoms mimic element failure so closely that meter testing is the only way to know which part actually died, and we test both on every no-hot-water call.

Signs Your Thermostats Need Replacement

• No hot water with the breaker on. A failed upper thermostat never calls the upper element for heat, and since the upper element has priority, the whole tank stays cold.
• Lukewarm water that never gets fully hot. A lower thermostat stuck open leaves the bottom of the tank unheated, cutting effective capacity roughly in half.
• Water far hotter than the dial setting. A thermostat whose contacts weld shut keeps its element energized past setpoint. This is a scald hazard and can trip the high-limit safety.
• The reset button trips repeatedly. An occasional trip after a power event is one thing; a high-limit that trips again days after being reset signals a thermostat not controlling temperature, and the underlying cause must be fixed rather than reset again.
• One element never seems to run. If testing shows an element is good but it never receives power during a heating cycle, its thermostat is not switching.
• Visible damage: melted plastic, discolored terminals, burnt odor. Loose wiring connections overheat thermostat terminals, and once the plastic housing is heat-damaged the thermostat must be replaced along with repair of the wiring.
• Heater runs constantly or cycles oddly. A thermostat with a failed sensing disc can short-cycle the elements, wasting energy and wearing components.

Why Thermostats Fail in Valrico Homes

Thermostats are electromechanical devices with bimetal discs and electrical contacts that cycle thousands of times over their life, and contacts eventually pit and weld. Heat is the accelerant, and Valrico garage installs keep the area around the heater warm year-round, raising the baseline temperature the thermostats live in. Voltage fluctuations during summer storm season pit contacts faster; we see a noticeable uptick in thermostat failures after major lightning events. Loose wire connections, sometimes from the original install and sometimes from a previous do-it-yourself element swap, overheat terminals and cook the thermostat from the wiring side. Hard-water scale contributes indirectly: scaled elements run hotter and longer, putting more thermal stress on the thermostats mounted inches away. Finally, thermostats that have been drenched by a tank or fitting leak corrode internally and cannot be trusted afterward, even if they test okay once dried.

Our Thermostat Replacement Process, Step by Step

1. Power off and verify dead. The double-pole breaker goes off, and we verify zero voltage at both thermostats with a meter and non-contact tester before any panel is opened.
2. Meter-test both thermostats and both elements. Continuity, switching behavior, and high-limit function are tested. We replace what testing condemns, and we show you the readings.
3. Photograph and label wiring. Thermostat wiring must return to exactly the right terminals. We document the layout before disconnecting a single wire.
4. Remove the failed thermostat. It unclips from its bracket against the tank wall. We inspect the mounting surface for corrosion or scale that would prevent good thermal contact.
5. Install the matched replacement. Thermostats are matched to the heater's voltage and element wattage. We replace thermostats in pairs when one has failed from age, because the survivor has lived the same life, and we say so upfront rather than surprising you later.
6. Repair any heat-damaged wiring. Discolored terminals get cut back to clean copper and properly terminated. A new thermostat on damaged wiring is a repeat failure waiting to happen.
7. Set temperature and test the sequence. Both thermostats are set to 120 degrees. Power is restored and we verify the staging sequence: upper element heats first, then hands off to the lower, then the system satisfies and shuts off.
8. Confirm high-limit safety. The reset buttons are checked for proper mechanical function so the safety layer is intact.

Equipment and Materials

We stock upper and lower thermostats for the common residential electric models, including the upper units with integrated high-limit switches, matched to 120/240-volt systems and standard element wattages. Our trucks carry multimeters, clamp ammeters, non-contact voltage testers, insulated hand tools, wire strippers and crimpers, high-temperature wire terminals, and infrared thermometers to verify tank zones reach setpoint evenly. We also carry replacement access panels and insulation for units where previous work left the panels damaged or missing, since proper panels keep the thermostats sensing tank temperature instead of garage air.

Safety and Precautions

Thermostat work is electrical work inside a 240-volt appliance, and we treat it accordingly. Power is verified dead at the thermostat terminals themselves, because mislabeled breakers are common in older Valrico homes and a second feed is always possible until proven otherwise. We never defeat or bypass the high-limit safety to keep a heater running; a tripping high-limit is evidence of a dangerous over-temperature condition, and bypassing it has caused fires. Replacement thermostats are set to 120 degrees as the safe default, which controls scald risk while keeping water hot enough for household needs. If we find aluminum wiring, damaged insulation, or a breaker panel with its own problems, we flag it plainly and address only what is safe to address within the water heater scope. Water and electricity share this appliance, so any sign of tank leakage during thermostat service redirects the job to leak diagnosis first.

Valrico, FL Local Factors

Electric tanks are the majority in Valrico's newer subdivisions, FishHawk Ranch, Riverview, and the 2000s Brandon builds, and thermostat service is correspondingly common. Garage installs mean the thermostats' surroundings run hot in summer, and we find setpoint drift complaints every cooling season from owners whose water seems hotter in August than in January; ambient heat genuinely affects these mechanical controls. Storm season is the other local driver: lightning-induced surges weld thermostat contacts and fry high-limit switches, so a no-hot-water call the week after a major thunderstorm gets surge damage on the differential from the start.

In older Bloomingdale, Seffner, and Temple Terrace homes, we encounter original 1990s electric tanks where a previous owner replaced elements but never thermostats, leaving twenty-five-year-old controls switching new elements. We also see handyman element swaps with mismatched thermostats or loose terminal screws that overheated. Attic installs in two-story homes add access awkwardness but no technical difference; the thermostats do not care where the tank sits. For well-water homes around Dover, Lithia, and Wimauma, the indirect link matters: heavy scaling makes elements run hotter and longer, which ages nearby thermostats faster, so we often recommend pairing thermostat replacement with a flush.
