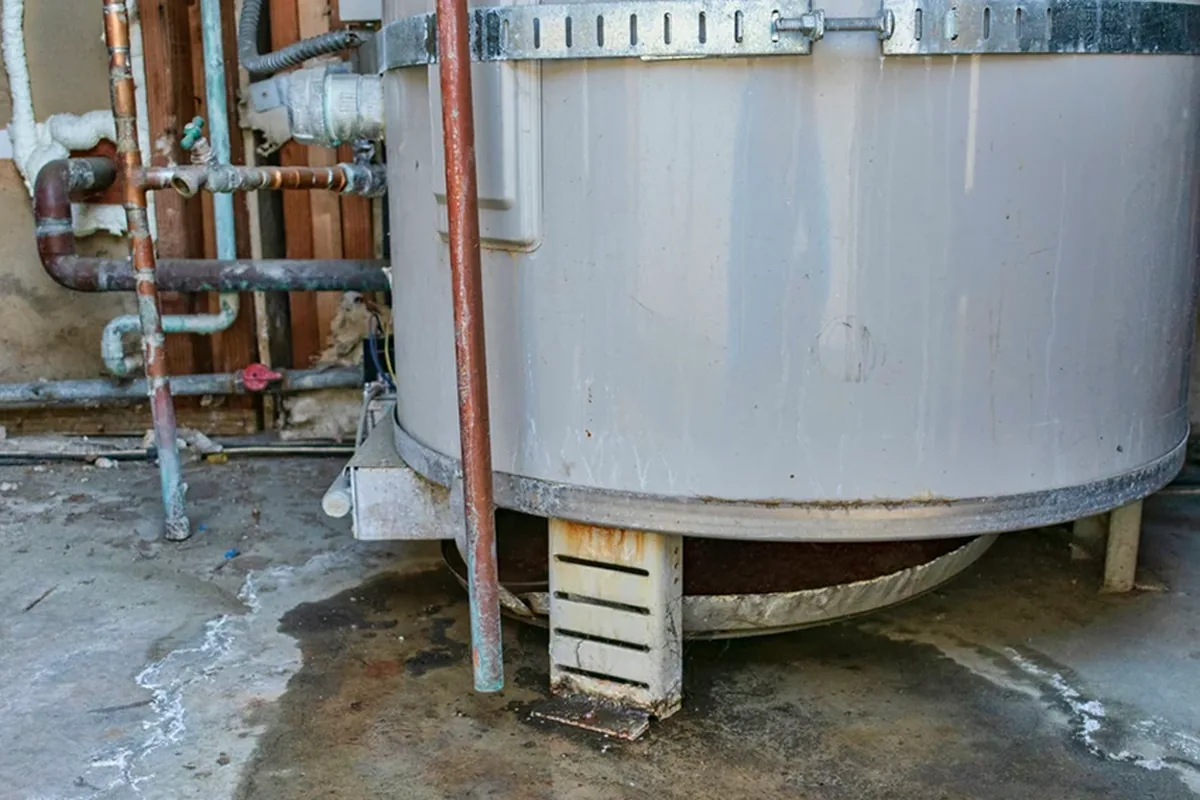

Water Heater Pan Installation in Valrico, FL

What a Drain Pan Does

A water heater drain pan is a wide, shallow tray, typically metal or heavy plastic, two to four inches deep, that sits underneath the tank and catches water from slow leaks, weeping fittings, relief-valve discharge, and condensation. On its own a pan just holds a couple of gallons, which is why a proper installation always includes a drain line: a pipe from the pan's drain fitting running to a safe termination point such as the exterior, a floor drain, or an approved indirect receptor. The pan catches; the drain line removes. Together they convert a future leak from a flooring disaster into a damp spot outside.

Pans are required by code wherever a tank leak could cause damage, which in practice means any heater installed above finished space, in an attic, or in an interior closet. But even where not strictly required, such as a garage with a slab floor, a pan with a drain line is inexpensive protection for stored belongings, drywall bases, and the wall framing that wicks water upward. Many Valrico homes we visit have either no pan at all or a pan with no drain line, which is barely better than nothing: it overflows exactly when it is needed most.

Signs You Need a Pan or Your Pan Needs Attention

• No pan under the heater at all. Common in older garage installs and in homes where the original pan cracked and was removed rather than replaced.
• Pan present but no drain line connected. The drain fitting sits capped or open with nowhere for water to go. This is the most common deficiency we find.
• Cracked, rusted-through, or warped pan. Plastic pans go brittle with age and heat; metal pans rust through, especially in damp garages. A compromised pan gives false confidence.
• Drain line clogged, disconnected, or terminating badly. Lines clog with sediment and insect nests, get crushed during storage rearrangement, or were never run to a real termination point.
• Water stains inside the existing pan. Evidence the pan has already caught a leak, which means the leak source also needs attention.
• Heater sits in an attic or above finished space without protection. This is the highest-risk configuration and the one where a pan is least optional.
• You are replacing the water heater. A new tank on an old, cracked, or missing pan wastes the opportunity; pan replacement during heater replacement costs far less than a separate visit.

Our Pan Installation Process, Step by Step

1. Assess the location and access. We confirm the heater's position, available clearance, and the most practical drain-line route to a safe termination. Attic installs get extra attention to routing that cannot freeze or clog unnoticed.
2. Shut down and disconnect as needed. For a pan-only install under an existing heater, we shut off water and energy, disconnect supply lines and the vent or electrical as required, and lift or shift the tank. When combined with a heater replacement, the pan goes in while the old unit is out, which is the ideal sequence.
3. Size and set the pan. The pan must be at least two inches larger in diameter than the tank, or sized to the rectangular footprint for the unit. It sits level so water flows to the drain fitting rather than pooling at the far edge.
4. Install the drain fitting and line. A proper bulkhead drain fitting goes in the pan side, and the drain line, typically 3/4-inch PVC or CPVC, runs with continuous downward slope to its termination. No traps, no uphill sections, no valves in the line.
5. Terminate correctly. The line ends where discharging water causes no harm: outside the building where it is visible, into a floor drain, or to an approved receptor. Exterior terminations are placed where the drip is noticeable, because a pan drain that suddenly starts flowing is an early warning worth seeing.
6. Consider a leak alarm. We offer water-sensor alarms that sit in the pan and sound when water appears. In attics and interior closets, where nobody looks at the heater for months, an alarm is the difference between catching a weep and discovering a collapse.
7. Reconnect, refill, and verify. The heater is reconnected, refilled, and returned to service. We pour test water into the pan to confirm it drains freely through the full line run.

Materials and Equipment

We stock round and square drain pans in the sizes that fit standard 30 to 75-gallon residential tanks, in both heavy-gauge aluminum and high-impact plastic, plus extra-deep pans for high-risk attic locations. Our trucks carry bulkhead drain fittings, PVC and CPVC pipe and fittings, pipe hangers and straps, PVC cement, water-sensor leak alarms, shims for leveling, and the lifting equipment needed to safely raise a full-size tank. We also carry pan materials compatible with gas heater installations, where the pan must not interfere with combustion air openings at the base of the unit.

Safety and Precautions

Pan installation under an existing heater means moving a heavy appliance, and a 50-gallon tank weighs over 600 pounds full, which is why we drain before lifting and use proper lifting technique and equipment rather than improvising. Gas units get their supply shut off and leak-checked after reconnection; electric units stay de-energized until refilled. On attic installs, we verify the ceiling structure can support the work and we protect finished surfaces along the drain-line route. The drain line itself is a safety item: we never connect a pan drain to a line that could backflow, never reduce its diameter, and never terminate it where discharge creates a slip hazard at a walkway. If the existing heater shows active tank leakage during a pan install, we stop and discuss replacement, because a pan is protection against future leaks, not a treatment for a failing tank.

Valrico, FL Local Factors

Pan relevance in Valrico tracks installation location. Attic installs in two-story FishHawk Ranch, Riverview, and newer Brandon homes are the prime case: a tank weep in an attic becomes ceiling damage within days, and a pan with a visible exterior drain termination is the early-warning system. Many of these attics were built with pans that were never connected to drains, a defect we correct regularly. Garage installs on slabs, standard across Bloomingdale, Seffner, Temple Terrace, and most of Valrico proper, benefit differently: the slab itself will not be ruined, but drywall bases, stored belongings, and wall framing will, and a drained pan keeps the water moving out the garage instead of sideways into the house.

Florida's insect life is a genuine maintenance factor for pan drains: exterior terminations clog with mud-dauber nests and debris, so we place terminations where owners can see and clear them, and we mention checking them during our visits. Hurricane season adds urgency to the whole concept; storm-driven pressure events and outages produce the failures, and the pan is what stands between a failed tank and ruined flooring while you wait for service. In high-water-table pockets near the Alafia River and around Lake Thonotosassa, garage slabs stay damp enough to rust metal pans from below, so we favor plastic or aluminum pans there and check the slab condition during installation. For homes with water softeners or treatment equipment crowded into the same utility space, we route pan drains to avoid cross-connection with any other discharge and keep the installation serviceable.
