Water Heater Pan Installation in Mango, FL

A water heater holds forty to fifty gallons. The question for every Mango homeowner is simple: when — not if — the tank eventually weeps, where do those gallons go?

Here in Mango, 33550, 1960s–80s galvanized and copper reaching end of life shape every pan installation job we do. The sections below explain how the service works, what local conditions change about it in the 33550 ZIP, and how to tell when it is time to call Water Heater Leak Repair Works at (833) 713-2101.

Water Heater Pan Installation in Mango, FL 33550

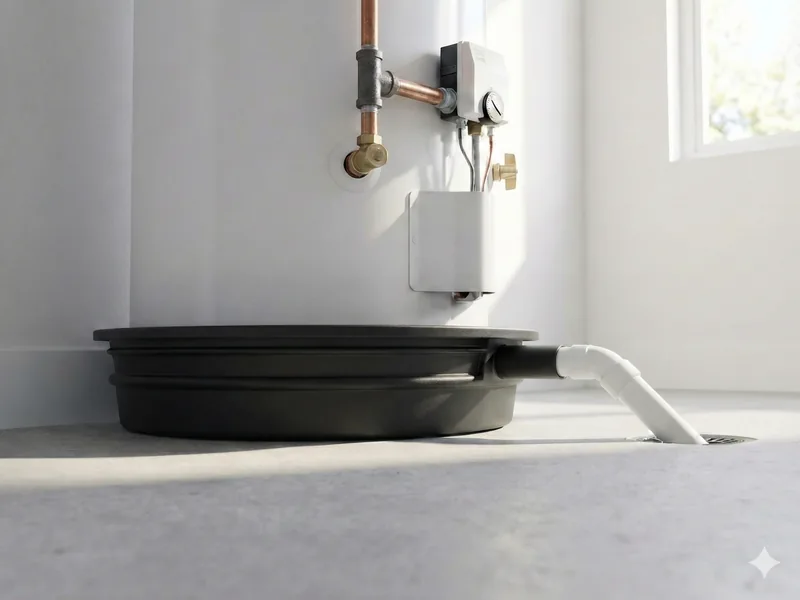

A water heater drain pan is a shallow, watertight tray that sits under the tank to catch leaks, drips and relief-valve discharge before they reach your floors. It is one of the simplest components in the plumbing world and one of the most cost-effective: a pan that costs little turns a future tank failure from a flooring disaster into a visible drip you notice and address. The pan itself does nothing active — its job is containment plus early warning, and it does both jobs only if it is correctly sized, correctly pitched and connected to a drain line that goes somewhere.

Pans are required by code wherever a water heater leak could cause damage — over finished living space, in attics, on upper floors — and they are strongly advisable everywhere else a tank sits near anything you care about. Many older Florida installs predate current expectations: the heater sits directly on the garage floor or on a closet platform with no pan at all, or with a pan whose drain line was never completed. We encounter both constantly, and both are correctable in a single visit.

Pan materials matter more than most people expect. Plastic pans are inexpensive and immune to rust but can crack under a full tank's weight if unsupported; metal pans are sturdier but can corrode at the drain fitting in humid or coastal air. We select the pan for the installation environment — not simply the first option on the shelf — and we treat the drain line as half the job: a pan with no working drain is a shallow bowl that merely delays the inevitable by a few gallons.

Signs You Need a Drain Pan (or a Better One) in 33550

Most homeowners never think about the pan until a leak teaches them its value. Here is what to look for before that lesson arrives:

• No pan under the unit at all. Common in older installs. If your heater sits directly on the floor or platform with nothing beneath it, every future drip goes straight to the building.
• A pan with no drain line. A pan that was never plumbed to a drain only holds a gallon or two before overflowing — it delays damage by minutes, not days.
• A rusted or cracked pan. Metal pans corrode at the drain fitting; plastic pans crack with age and load. A compromised pan is decoration, not protection.
• Water stains on the ceiling below. For attic and upper-floor units, stains below mean water already escaped containment — the pan is missing, failed, or was never drained.
• A drain line that goes nowhere visible. If you cannot find where the pan drain terminates outside, it may terminate inside a wall cavity — which is worse than no drain at all.
• You are replacing the tank anyway. A heater swap is the ideal moment: the area is clear, the system is open, and adding the pan costs a fraction of a return visit.
• Insurance or HOA requirements. Some policies and communities require pans under heaters in certain locations. Compliance now beats a denied claim later.

Mango Homes: Local Plumbing Conditions in 33550

Mango is a modest 1960s to 1980s suburb on Tampa's eastern fringe, near the I-4 and I-75 junction along Dr. Martin Luther King Jr. Boulevard. The homes are straightforward single-family ranches on slab foundations, and the plumbing is period-typical: galvanized steel in the 1960s builds, copper in the rest, all of it now 40 to 60 years old. There is nothing exotic about Mango's housing stock, which is exactly why the failure patterns here are so predictable — and so preventable when caught early.

The defining trait of the 33550 ZIP's plumbing is deferred maintenance meeting end-of-life materials. Galvanized supply lines from the 60s and 70s are at the stage where internal corrosion restricts flow and threaded joints begin weeping; copper from the 80s is entering the pinhole window on hot lines. Water heaters connected to these aging systems inherit sediment from the pipe walls and erratic flow that masks the heater's own symptoms. Many Mango homeowners have simply never had the system evaluated — the equipment runs until it does not.

The upside of Mango's straightforward construction is that diagnosis is usually fast: slab-on-grade with accessible garage heater installs, no historic constraints, no coastal corrosion, no wells to complicate the picture. County water is hard and loads tanks with sediment on the standard Florida schedule. When we find problems here they tend to be advanced — a tank that has been rumbling for two years, a valve that has wept since spring — because modest homes often stretch equipment until failure forces the call.

How Mango Changes Pan Installation

The local facts above are not background color — they change the work itself. Here is how Mango's conditions apply directly to pan installation:

In Mango, the pan conversation usually happens at replacement: the original 1970s or 80s heater never had one, and adding a properly drained pan with the new unit is the moment to do it. For garage installs we run the drain line to the exterior where a future drip is visible from the driveway — simple, effective, and matched to how these homes are actually used. If the existing tank is sound but pan-less and the homeowner wants prevention now, a retrofit pan is a short visit.

That local lens is built into every pan installation visit we make in 33550 — call (833) 713-2101 and we will apply it to your home.

Where the Pan Drain Line Should Go

The drain line is what makes a pan work, and its routing follows a simple principle: to a place where you will see the water and where the water can do no harm. That usually means terminating outside the building, visible above grade — near a hose bib, at the edge of a patio, anywhere a drip catches the eye during normal life. A pan drain that terminates where nobody looks defeats the early-warning purpose; a pan drain that terminates where water pools against the foundation trades one problem for another.

There are places the drain must not go: into a wall cavity, into a crawlspace where it soaks the ground unseen, uphill (water does not climb without a pump), or connected in ways that could allow backflow into the pan. The line needs continuous downward pitch, protection from clogging, and a termination that stays clear of soil, mulch and debris. When we install or correct a pan drain, we test it with water before we leave — watching it flow from pan to termination — because an untested drain is an assumption, and assumptions are what failed the last time.

Our Pan Installation Process in Mango

Pan installation is a compact job, but we treat it with the same methodical sequence as any larger project:

1. Assessment. We evaluate the heater's location, the space available, the tank's footprint and weight, and the feasible drain-line routes — including what the installation environment (humidity, coastal air, attic heat) demands of the materials.
2. Pan selection and fit. The pan is sized to the tank with margin, checked against the available footprint, and set level with proper pitch toward the drain outlet. For replacements, this happens with the area clear.
3. Drain line routing. We run the drain line with continuous downward pitch to a visible exterior termination, securing it along the route and keeping it clear of hazards. No uphill runs, no hidden terminations.
4. Testing. We pour water into the pan and watch it travel the full drain path to the termination — verifying flow, pitch and visibility before the job is considered done.
5. Walkthrough. We show you the pan, the drain route and the termination point, and explain what to watch for: a drip at the termination means the pan is doing its job and the heater needs attention.

Water Heater Pan Installation in 33550: Call Water Heater Leak Repair Works

One visit, one pan, one working drain line — and the next tank failure becomes a noticed drip instead of a disaster. Call (833) 713-2101 to schedule.
